The mcoes++ system has a number of interesting propereties and funtionalities. The functionality of the system can be shown with display images.
  1. The operative usage of the system is started by first invoking the lot browsing and selection window.
  2. The design data interface has been implemented with extdesign++ system.

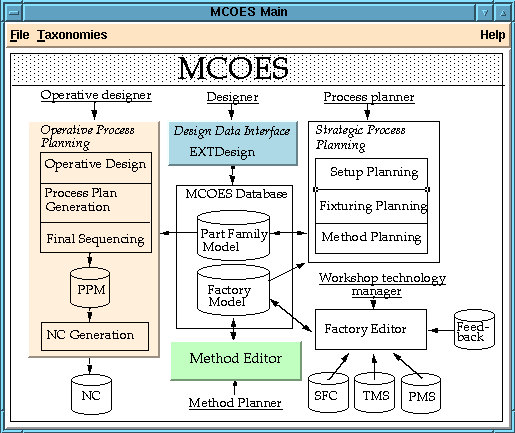

  3. Manufacturing Cell Operator's Expert System

  4. Selecting a lot on order basis

  5. Look at the meaning of parameters, then modify them ...

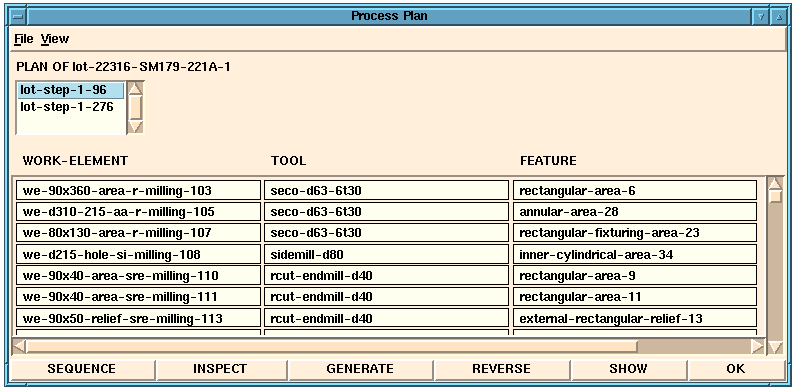

  6. Make a process plan



  7. Sequence the plan and generate NC for making the workpieces

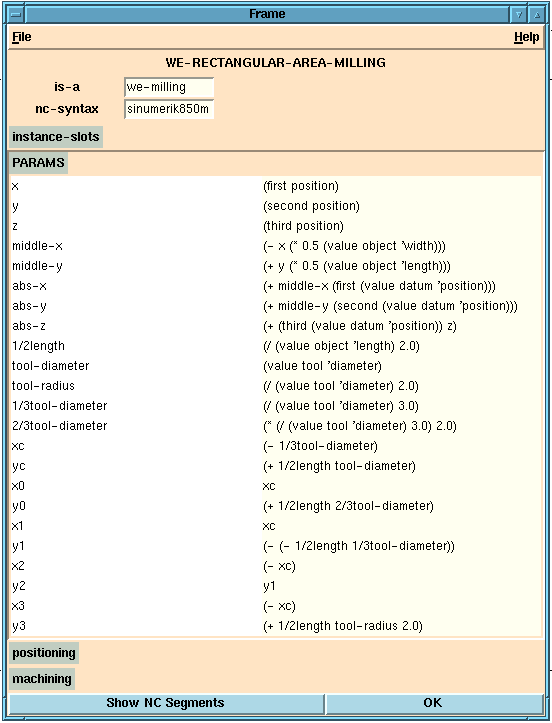

  8. Tool path is computed with LISP


  9. The syntax of the generated code can is expressed separately
